wu • jing A

500×500mm 5-Functions Smart Emotional Shower System with Dual Speakers

main features

Code No.: 180100

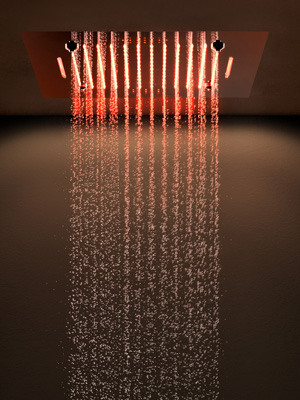

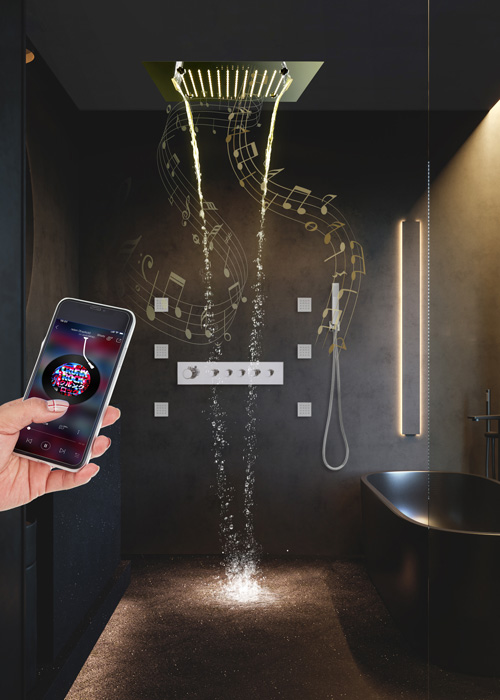

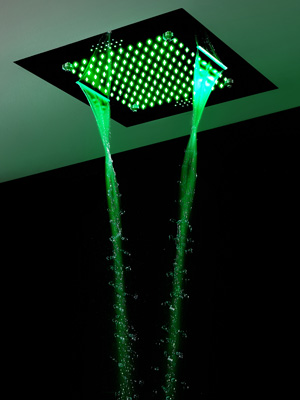

Wu • Jing A delivers a comprehensive showering experience with four modes and immersive sensory features: wide rainfall coverage for total body relaxation, dual waterfall jets that rinse shoulders and back simultaneously, integrated wall spray jets positioned at ergonomic heights for targeted massage, and ion-rich mist function that enhances air quality while providing gentle facial mist exposure. This combination ensures every bathing scenario—from therapeutic recovery to daily cleansing—has an optimal water experience.

The dual premium Bluetooth speakers seamlessly integrated into the shower column design. These speakers deliver crystal-clear stereo audio across the shower space, bringing your music, podcasts, or meditation sounds right into your personal spa sanctuary. They connect directly to your smart device via standard Bluetooth and are powered by a compact AC 95-265V → DC 12V transformer that connects to your bathroom’s lighting circuit—no batteries needed, no charging interruptions. Both speakers carry IP66 waterproof rating for complete submersion protection even during intense steam sessions.

The integrated LED chromotherapy lighting embedded within the 500×500mm stainless steel frame, offering vibrant color variations controlled via remote. Both the LED panel and Bluetooth speakers share the same safe low-voltage power system, eliminating high-voltage electricity near water while providing reliable continuous operation. The entire assembly weighs approximately 25 kg (55 lbs) and is constructed from commercial-grade 304 stainless steel, resistant to corrosion and mineral deposits.

Installation requires concealed mounting: the five-function thermostatic valve must be installed inside the wall behind tiles (professional plumbing required), while the main shower head mounts flush into the ceiling with a 500×500mm cutout. All connections use standard G½” fittings compatible with US/EU plumbing standards. Minimum ceiling height of 2.2m and 100-150mm recess depth are recommended.

Ideal for wellness-focused homeowners, fitness enthusiasts seeking post-workout recovery, hotels and resorts aiming to differentiate guest bathrooms, luxury villas and vacation rentals, and premium spa centers requiring professional-grade fixtures with comprehensive thermal control.

shower mode

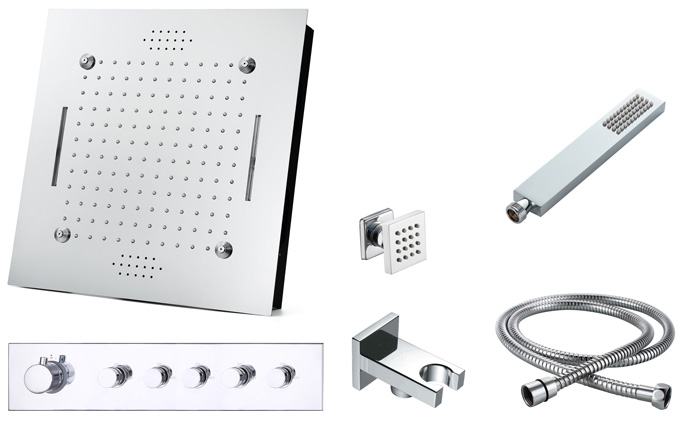

components

This shower system includes these parts:

Wu • Jing A Shower Head	1
5-Functions Thermostatic Mixing Valve	1
Cradle	1
Handhold Shower	1
Hose	1
Massage Side Spray	6
Total	11

color options

We provide 6 color options for complete shower system, only except the ABS parts.

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Product Parameters

Model No.	Wu • Jing A
Main Material	304 Full Stainless Steel

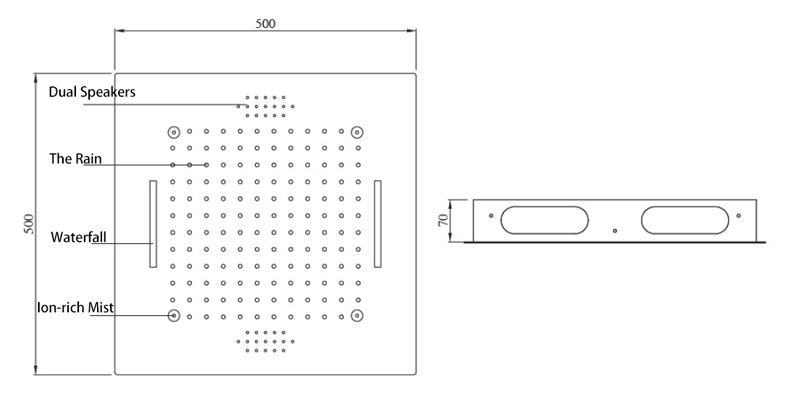

Dimension	500 * 500 * 71.5 mm
Frame Size	480 * 480 * 70 mm
Weight	11 kgs
Power Supply	AC 90~265V, 50/60Hz
Operation Voltage	DC12V
Power Consumption	9W
Water Pressure	0.1 ~ 1.0 MPa
Nos of Silicone Nozzle	140
Ceiling Recess Depth	100mm
Water Inlet	1/2″ male
Connections	1/2″
Bluetooth Speakers	2
Stripe Light Type	RGB

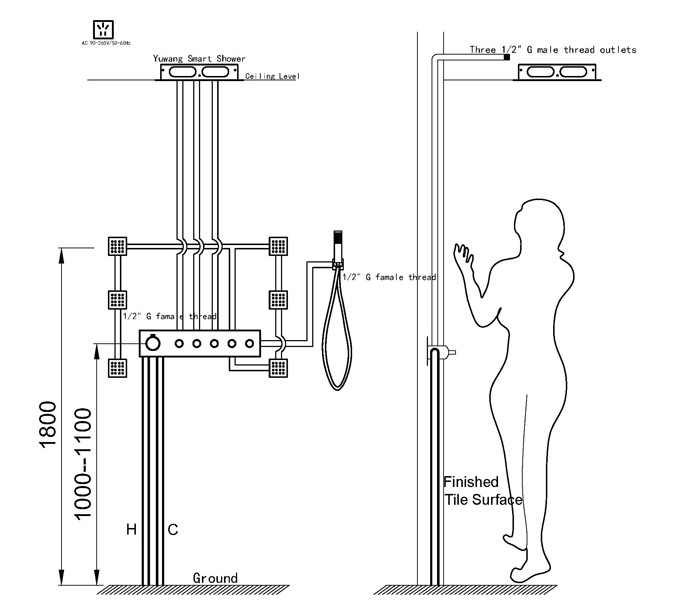

installation draft

all models for this collection

What are the exact dimensions and weight of Wu • Jing A?

The shower panel measures 500×500mm (approximately 20×20 inches), suitable for users up to 6ft tall. Total system weight is approximately 25 kg (55 lbs)—a solid build ensuring stability and longevity. Ceiling recess depth requirement is 100-150mm; minimum ceiling height should be 2.2m (7.2ft).

How many modes does Wu • Jing A have? What are they?

Four distinct water modes: wide rainfall mode covering the entire body, dual waterfall jets targeting shoulders/back, six adjustable wall spray jets at ergonomic heights for upper-body massage, and ion-rich mist function for air purification and facial mist benefits. Plus two waterproof Bluetooth speakers for audio immersion.

Is the thermostatic valve built-in or external?

The five-function thermostatic valve requires concealed installation inside the wall behind tiles. Professional plumbing is essential for proper waterproof sealing and pressure balancing. External controls include temperature knob, mode selector, and on/off switches—all accessible before entering the shower zone.

How does the ion-rich mist function work?

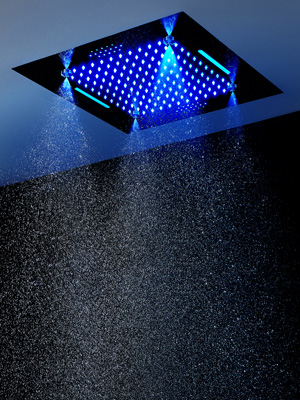

The mist function uses pressurized air injection through specialized nozzles to create ultra-fine ion-enriched water particles that float in the air like a light fog. This freshens the bathroom environment, reduces stagnation, and provides gentle inhalation benefits—similar to cloud therapy without chemicals or heating elements.

Are the speakers truly safe for wet environments?

Yes, both speakers carry IP66 waterproof rating—the highest industry standard meaning they can withstand complete and prolonged submersion in water without damage. You can safely spray any water mode directly onto them, including the ion mist. Engineered for harsh bathroom conditions including steam and condensation.
