cheer bath 500

500×500mm 4-Functions Smart Emotional Shower System with Dual Speakers

main features

Code No.: 190100

Cheer Bath 500 redefines luxury bathing with three signature innovations: versatile hydrotherapy modes, immersive RGB chromotherapy lighting, and premium integrated audio.

Its most distinctive feature is the dual-mode water delivery system. The graceful Guangzhou Tower Mode creates an elegant curved water arc that cascades gently across your body, while the dual Angel Falls waterfall jets deliver powerful yet soothing pressure perfect for rinsing shoulders and back—ideal for unwinding after a long day. This combination of gentle rainfall and targeted massage ensures every mood—from energizing mornings to calming evenings—has its perfect water experience.

The second innovation is the large-area RGB LED color panel, embedded within the 500×500mm stainless steel frame and offering endless color variations. Both the LED system and dual high-fidelity Bluetooth speakers share a single compact transformer (AC 95-265V input → DC 12V output) that connects directly to your bathroom’s lighting circuit. This low-voltage design eliminates high-voltage electricity near water, requires no batteries or wireless charging, and provides reliable continuous power. Both carry IP68 waterproof rating—the highest protection standard for complete submersion in water.

The third differentiator is the dual premium Bluetooth speakers, seamlessly integrated and powered by the same safe 12V DC transformer. These speakers deliver crystal-clear stereo audio across the shower space, creating an immersive concert experience. With IP66 waterproof protection, they withstand complete submersion without degradation—even during intense steam sessions.

Built from commercial-grade 304 stainless steel, the system weighs approximately 23 kg (51 lbs) and resists corrosion and mineral deposits. Installation requires concealed mounting: the mixing valve needs hidden wall piping behind tiles (professional plumbing required), while the main shower head mounts flush into the ceiling. All connections use standard G½” fittings compatible with US/EU plumbing standards.

Ideal for wellness-focused homeowners, fitness enthusiasts, hotels, resorts, luxury villas, and premium spa centers requiring professional-grade fixtures

shower mode

components

This shower system includes these parts:

Cheer Bath 500 Shower Head	1
5-Functions Large-Flow Mixing Valve	1
Sliding Rod	1
Wall-mounted Tap	1
Handhold Shower	1
Hose	1
Massage Side Spray	3
Total	9

color options

We provide 6 color options for complete shower system, only except the ABS parts.

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Product Parameters

Model No.	Cheer Bath 500
Main Material	304 Full Stainless Steel
Dimension	500 * 500 * 71.5 mm
Frame Size	460 * 460 * 70 mm
Weight	18 kgs
Power Supply	AC 90~265V, 50/60Hz
Operation Voltage	DC12V
Power Consumption	18W
Water Pressure	0.1 ~ 1.0 MPa
Ceiling Recess Depth	100mm
Water Inlet	1/2″ male
Connections	1/2″
Bluetooth Speakers	2
Stripe Light Type	ROB

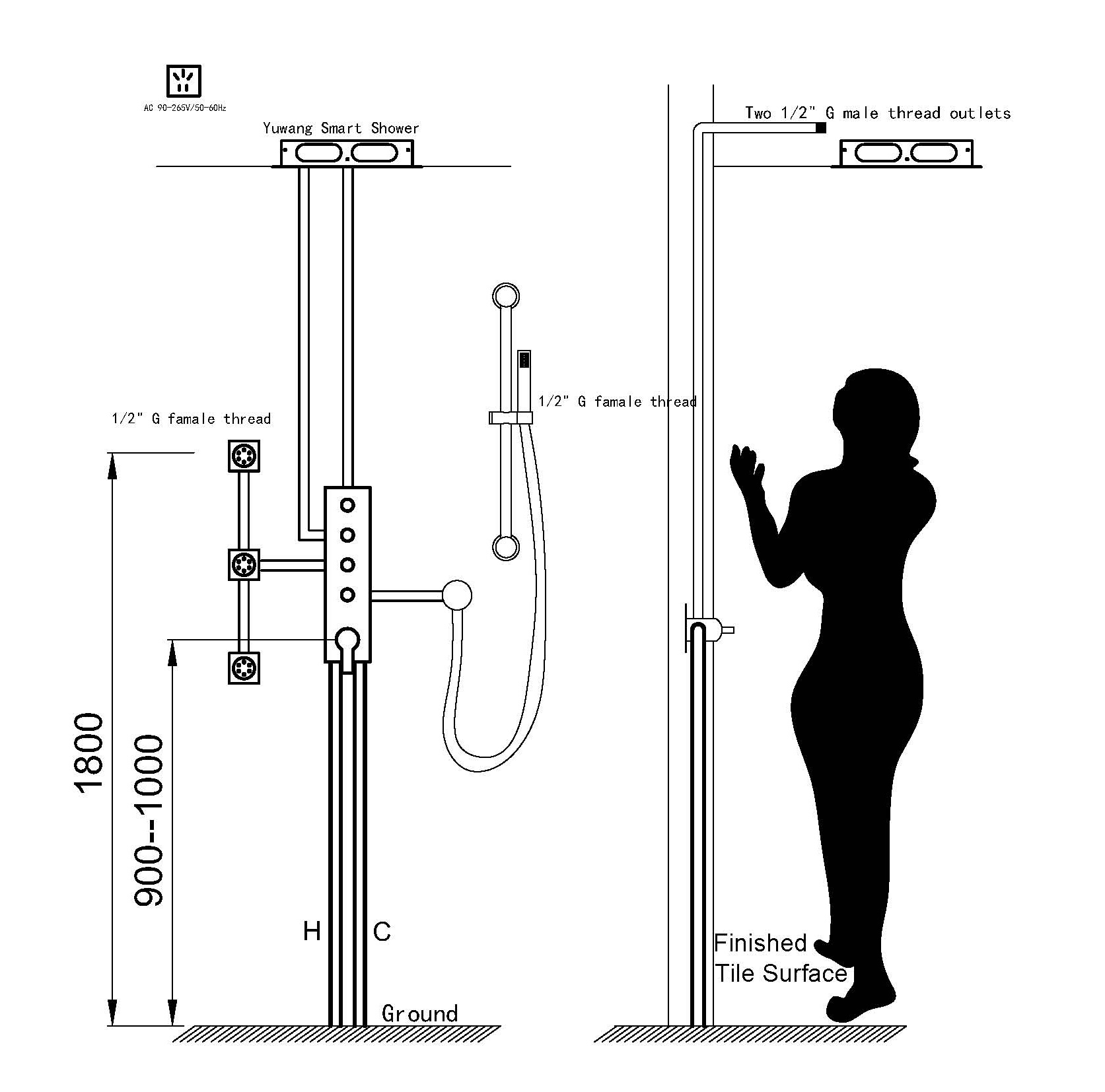

installation draft

all models for this collection

What are the exact dimensions and weight of Cheer Bath 500?

The shower panel measures 500×500mm (approximately 20×20 inches), providing generous coverage for adult users up to 6ft tall. Total system weight is 23 kg (51 lbs)—a solid build that ensures stability and longevity. Ceiling recess depth requirement is 100-150mm depending on ceiling type; minimum ceiling height should be 2.2m (7.2ft) for comfortable standing room.

How does the Guangzhou Tower Mode work? Does it need special water pressure?

The Guangzhou Tower Mode uses hydraulic redirectors to send water outward horizontally before gravity pulls it downward, forming a graceful curved arc reminiscent of Canton Tower’s silhouette. It works optimally at 0.3-1.0 MPa water pressure. Below 0.3 MPa, the tower shape weakens; above 1.0 MPa, add a pressure regulator to prevent excessive force. No booster pump needed for typical apartment systems.

What’s the waterproof rating for LEDs and speakers?

Both the RGB LED light panel and dual Bluetooth speakers carry IP68 waterproof rating—the highest industry standard meaning they can withstand complete and prolonged submersion in water without damage. You can safely spray any water mode directly onto either component. They’re specifically engineered for harsh bathroom environments including steam, condensation, and direct rain impact.

Is professional installation required? Can I install it myself?

Professional installation is strongly recommended due to concealed mounting requirements. The thermostatic valve must be installed inside the wall (requires cutting open tiles, connecting to hidden pipes). The shower head mounts flush into the ceiling with 500×500mm cutout. Electrical connections also require certified electrician approval. Estimated DIY difficulty: Advanced (not recommended for average homeowners). We provide detailed installation manuals and video tutorials.

How are the LED lights and Bluetooth speakers powered?

Both components share a single transformer rated AC 95-265V input, 50/60Hz | DC 12V output that connects directly to your bathroom’s main lighting circuit. This eliminates need for separate electrical runs or battery replacement. The transformer is compact, weatherproof, and mounted discreetly in the ceiling cavity. Continuous power means no battery degradation, no charging cables, and truly seamless operation—you just turn it on and enjoy.

What’s the warranty period and what does it cover?

Comprehensive 2-year manufacturer warranty covers all mechanical components including the shower head, valve body, speakers, and LED panels. The transformer carries 1-year coverage. Waterproof seals and silicone nozzles included as consumable items not under full warranty but readily replaceable. Lifetime technical support available via email/video call for troubleshooting guidance. All materials are lead-free, BPA-free, and comply with international safety standards (CE, RoHS, IP68 certified).
