Honor 500

Circular Luxury with Pretty Waist & Surround Audio

main features

Code No.: 130200

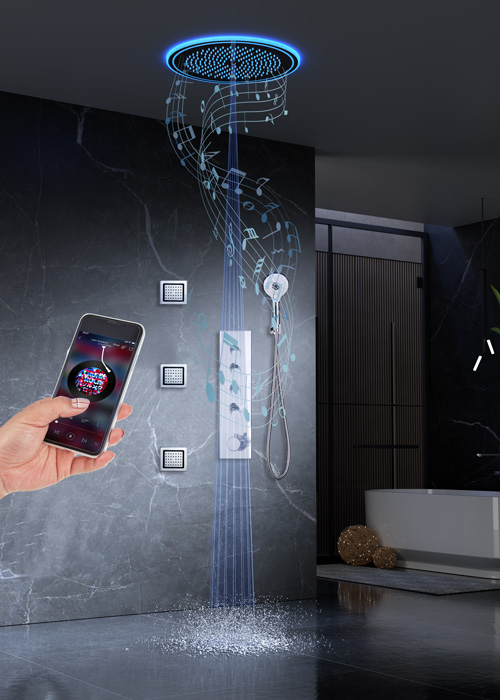

Honor 500 elevates round shower design to new heights of sophistication. This 500mm diameter masterpiece combines gentle rainfall with visually stunning “Pretty Waist” waterfall mode, while dual integrated Bluetooth speakers create immersive surround sound that transforms daily washing into a multi-sensory retreat.

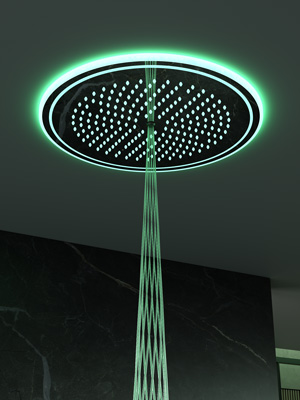

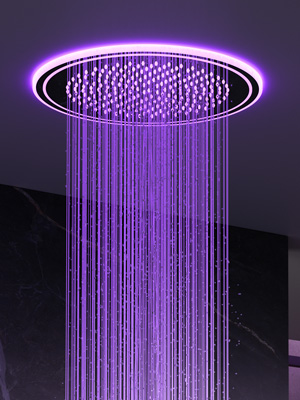

The oversized circular faceplate features 80 precisely-positioned nonozzles delivering comprehensive coverage across its expansive curved surface. Rainfall mode provides gentle enveloping distribution perfect for cleansing. Switch to Pretty Waist mode—narrow spiral-cone streams descend like the twisting steel structures of Guangzhou Tower’s iconic silhouette. Clear yet delicate, these sculptural water elements create mesmerizing visual effects without aggressive massage pressure, offering pure aesthetic pleasure and relaxation.
Dual waterproof Bluetooth speakers can pair any smartphone, tablet, or media player and fill your private sanctuary with crystal-clear audio—whether energizing beats for morning routines or soothing melodies for evening wind-downs.
Available configurations include three directional wall spray variants (neck, waist, and hip height) individually controllable via our premium SF213-K4 large-flow thermostatic mixing valve. These adjustable outlets target specific zones for supplementary comfort, though many users prefer relying solely on rainfall and Pretty Waist modes for purely visual enjoyment. Valve’s dual-knob design manages all functions simultaneously without pressure compromise, maintaining stable temperature control ±1°C despite incoming supply fluctuations.
Professional installation mandatory for concealed mounting maintaining pristine appearance. Ideal for luxury primary suite renovations, boutique hotel premium rooms, villa projects seeking centerpiece fixtures, spa-inspired residential designs, and anyone valuing distinctive aesthetics combined with sophisticated engineering excellence.

shower mode

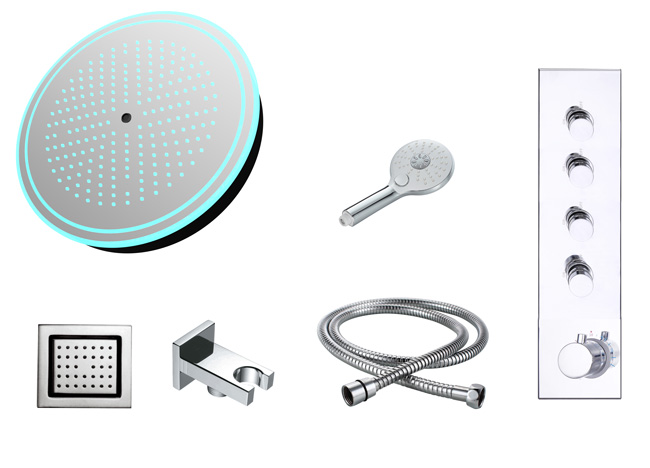

components

This shower system includes the following parts:

Honor 500 Shower Head	1
4-Functions Large-Flow Thermostatic Valve	1
Cradle	1
Handhold Shower	1
Hose	1
Massage Side Spray	3
Total	8

color options

We provide 6 color options for complete shower system, only except the ABS parts.

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Product Parameters

Model No.	Honor 500
Main Material	304 Full Stainless Steel

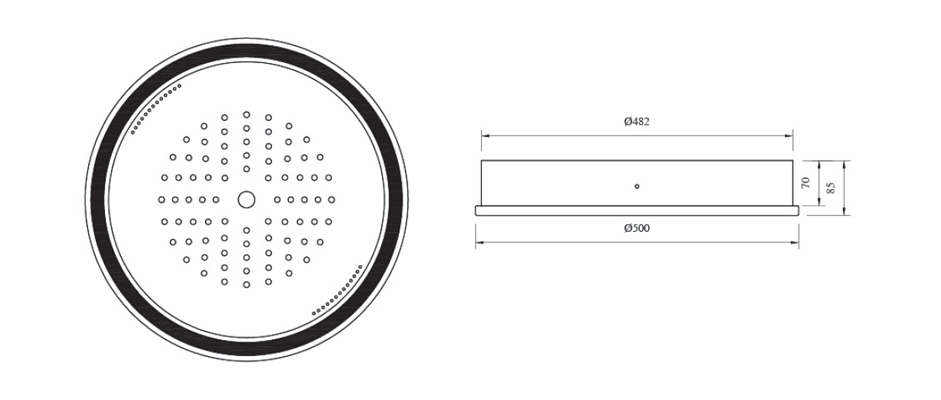

Dimension	Φ500 * 85 mm
Frame Size	Φ482 70 mm
Weight	11 kgs
Power Supply	AC 90~265V, 50/60Hz
Operation Voltage	DC12V
Power Consumption	9W
Water Pressure	0.1 ~ 1.0 MPa
Nos of Silicone Nozzle	80
Ceiling Recess Depth	100mm
Water Inlet	1/2″ male
Connections	1/2″
Bluetooth Speakers	2
Stripe Light Type	ROB

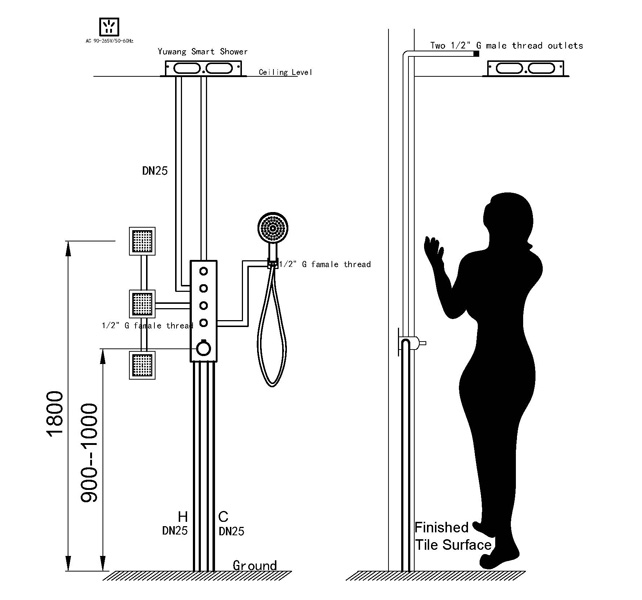

installation draft

all models for this collection

What exactly is “Pretty Waist” mode, and how does it differ from regular waterfall?

Pretty Waist creates narrow spiral-cone water streams inspired by the twisting steel lattice structure of Guangzhou Tower (locally known as “小蛮腰” or Little Waist). Unlike traditional flat waterfall panels producing wide sheets, these focused helical jets descend with elegant precision—clear definition yet remarkably soft touch. The pattern creates dynamic visual interest without strong massage pressure, making it ideal for relaxation rather than therapeutic work. Regular waterfall typically uses straight vertical channels; Pretty Waist adds artistic sculptural quality through its distinctive spiral geometry.

How do the dual speakers create surround sound versus standard single-speaker systems?

Two strategically-placed drivers distribute audio across opposite sides of the circular panel, generating true stereo separation rather than monaural output. This spatial arrangement allows music to appear coming from multiple directions simultaneously, enveloping listeners in three-dimensional soundscapes typical of professional audio installations. Compared to single-point speakers that localize sound to one area, dual-driver configuration creates natural panning effects and richer tonal depth. Many users report feeling “surrounded by music” rather than merely having background noise—a significant qualitative improvement for immersion-focused applications.

Can I adjust wall spray heights after installation if needed?

Yes—the SF213-K4 valve supports flexible positioning during initial setup. Our technical team provides detailed installation guidelines specifying optimal height ranges based on average user dimensions, but final placement adapts to individual household needs. If occupants vary significantly in stature, custom heights accommodate everyone comfortably. Should requirements change post-installation, removing wall covers and relocating jet mounts remains feasible though labor-intensive. Most customers select positions matching their family profile permanently after professional consultation.

Does running all functions simultaneously strain the plumbing system?

The SF213-K4’s large-flow capacity handles approximately 30+ L/min across combined operations without significant pressure drops. Standard residential systems easily support this demand unless municipal supplies operate below 0.5 BAR. Even then, performance remains adequate though slightly reduced. Properties experiencing very low pressure might consider booster pump upgrades to maximize simultaneous functionality benefits. Under normal conditions, no special infrastructure modifications necessary.

Are replacement parts readily available if speakers or lights fail?

Yes—we maintain comprehensive inventory covering all Honor series components including speaker modules, LED strips, power supplies, and mounting hardware. Common wear items carry 1-year standard coverage; structural elements guarantee 5 years against manufacturing defects. Registration required within 30 days activation window maximizing protection eligibility. Post-warranty repairs often cost-effective versus complete unit replacement given modular design philosophy. Authorized service networks provide localized support documentation including exploded-view diagrams facilitating DIY troubleshooting where appropriate.
