Honor 400

Round Rainfall Shower with Ambient LED Mood Lighting

main features

Code No.: 130100

Honor 400 brings a different kind of elegance to your bathroom—a circular design that breaks free from traditional square and rectangular conventions. This 400mm diameter rainfall shower panel combines classic water performance with ambient ROB lighting technology, creating both functional cleansing and atmospheric ambiance in one integrated fixture.
The most distinctive innovation is the integrated RGB LED flexible light strip. The lights create a soft, gradient glow around the panel perimeter rather than harsh direct beams—gentle on the eyes while establishing emotional-appropriate atmospheres from energizing morning sessions to calming bedtime routines.
A critical engineering detail separates Honor series from lower-cost alternatives: our power supply unit incorporates specialized anti-interference circuitry addressing common issues seen in cheap LED fixtures. Proximity between high-current transformers and sensitive light strips often causes frequency interference manifesting as visible flickering, color jumping, or unstable brightness. Honor 400’s shielded power module eliminates these problems entirely, ensuring smooth uninterrupted operation throughout years of daily use without degradation or annoying visual artifacts.
Professional installation recommended for concealed valve mounting maintaining clean aesthetic lines. Ideal for homeowners wanting distinctive design elements beyond conventional shapes, boutique hotels seeking memorable guest experiences, modern minimalist bathrooms emphasizing ambient lighting, and anyone appreciating thoughtful technical execution over superficial styling alone.
Perfect addition to existing remodels upgrading from basic rainfall units, new construction planning luxury primary suites, spa-inspired residential projects, and commercial properties differentiating their amenity offerings through superior attention to detail.

shower mode

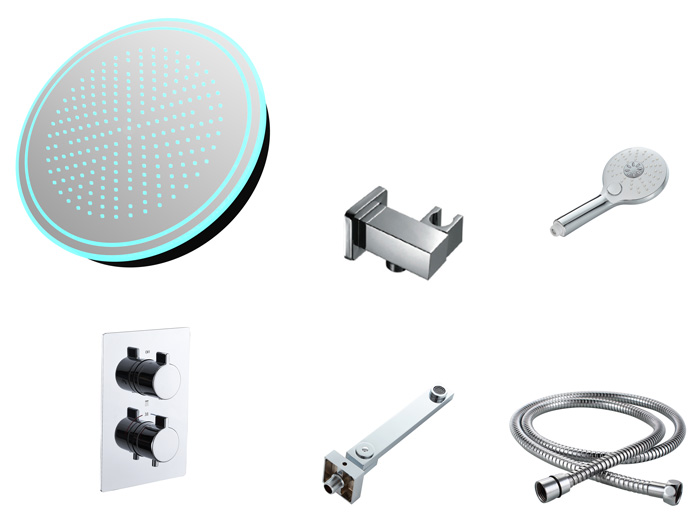

components

This shower system includes the following parts:

Honor 400 Shower Head	1
3-Functions Medium-Flow Thermostatic Valve	1
Cradle	1
Handhold Shower	1
Hose	1
Wall Mounted Tap	1
Total	6

color options

We provide 6 color options for complete shower system, only except the ABS parts.

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

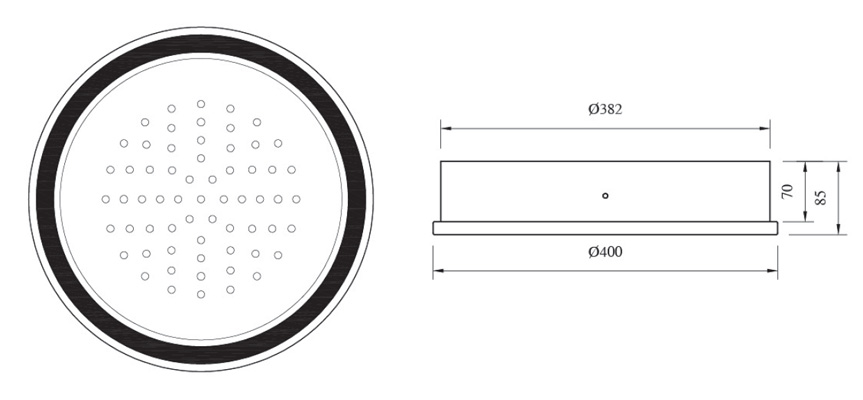

Product Parameters

Model No.	Honor 400
Main Material	304 Full Stainless Steel
Dimension	Φ400 * 85 mm
Frame Size	Φ382 70 mm
Weight	11 kgs
Power Supply	AC 90~265V, 50/60Hz
Operation Voltage	DC12V
Power Consumption	7W
Water Pressure	0.1 ~ 1.0 MPa
Nos of Silicone Nozzle	59
Ceiling Recess Depth	100mm
Water Inlet	1/2″ male
Connections	1/2″
Bluetooth Speakers	0
Stripe Light Type	ROB

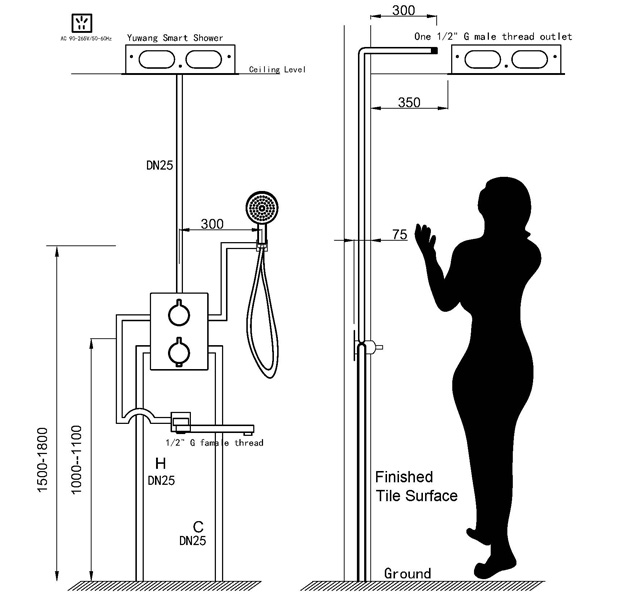

installation draft

all models for this collection

What makes Honor’s RGB LED technology better than basic colored shower lights?

Standard budget LEDs typically use fixed-color diodes producing single-hue output—red OR green OR blue—with limited transitions between modes. Our wide-spectrum RGB flexible strip contains thousands of individual micro-LEDs arranged along bendable circuitry enabling smooth gradient effects and precise color matching. You can select exact hues on a continuous spectrum rather than stepping through predefined presets. More importantly, color rendering stays consistent without hot spots or uneven distribution that plagues cheaper segmented designs. The result mimics professional architectural lighting quality adapted specifically for wet bathroom environments.

How does anti-interference power supply actually work, and why does it matter?

Conventional LED drivers convert AC mains voltage to low-voltage DC power using switching transformers operating at high frequencies. When placed within inches of light strip electronics, electromagnetic interference (EMI) couples into signal pathways causing observable symptoms: visible flicker at driver switching rate, colors jumping unpredictably, brightness pulsating under certain conditions. Honor 400 addresses this through multiple strategies: (1) Physical separation maximizing distance between power components and LED circuits; (2) Shielded transformer housings containing radiated emissions; (3) Filter capacitors suppressing conducted noise before reaching sensitive stages; (4) Grounding optimizations preventing ground-loop currents. These measures collectively ensure flawless operation even when compact installation constraints require close component placement.

Can I adjust light brightness independently from water temperature controls?

Absolutely—independent operation is built into design philosophy. Water functions remain completely separate from electrical systems with dedicated control interfaces for each. Rotate the main thermostatic knob for temperature adjustment without affecting lighting states; simultaneously activate preferred LED mode via touch-sensitive peripheral ring surrounding handle assembly. Some users prefer dimmed background ambience during showers while others enjoy full-brightness spectacle; both approaches supported equally well. Auto-shutdown timer optionally disables lights after extended inactive periods conserving electricity when not actively needed.

Does the circular shape limit installation options compared to standard rectangular panels?

Not really—the circular configuration adapts to most ceiling types including flat, sloped vaulted, and angled surfaces through appropriate mounting hardware selection. What matters more is ensuring adequate overhead clearance above your shower area minimum 2.2 meters recommended for comfortable headroom beneath large diameter fixtures. Standard G1/2″ plumbing connections accommodate typical residential supply arrangements without requiring custom fabrication. If replacing an existing rectangular unit, verify new circular outline doesn’t encroach on adjacent walls or fixtures creating awkward spatial relationships during actual usage scenarios.

How often should I clean the LED strip versus nozzles

Light strip requires minimal maintenance given sealed protective coating resisting mineral deposits accumulation. Quarterly gentle wipe-down sufficient removing surface dust or occasional splashes avoiding abrasive materials damaging transparent cover layer. Nozzle cleaning follows same schedule as other Meteor/Dream Forest models—monthly quick rinse quarterly deeper vinegar solution soaking when necessary. Hard water regions may necessitate slightly more frequent attention but overall requirements remain comparable to non-lighted counterparts since primary water pathway unchanged regardless auxiliary features added.
